BRUNELLA  - maintenance

all models





The Brunella needs only 3 gaskets:

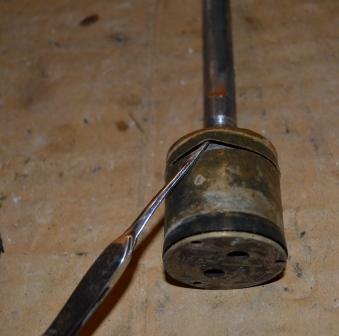

- 2 u-cup  for piston (pic 1)

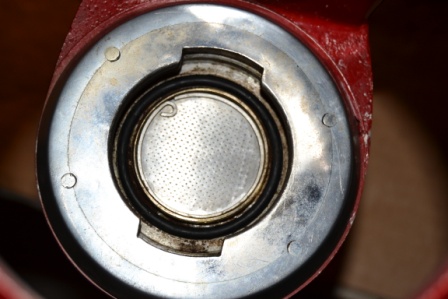

- 1  flat gasket for portafilter (pic 2)

pic 1

(please note that the direction of the two gaskets is the same)

pic 2



The maintenance concerns the piston seals and the shower plate gasket. To disassemble the piston necessary to remove the shower and push the piston upwards in order to remove the pins of the lever.

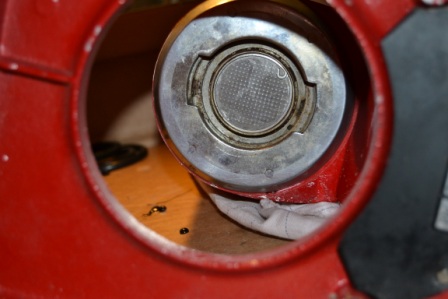

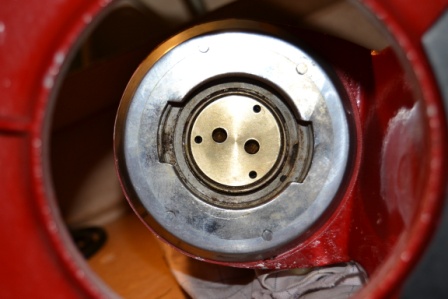

remove the shower plate

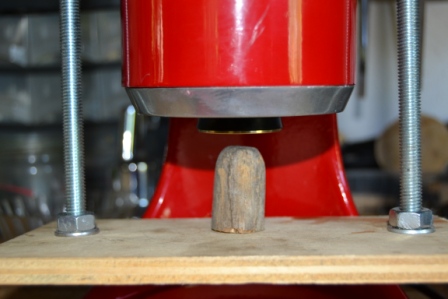

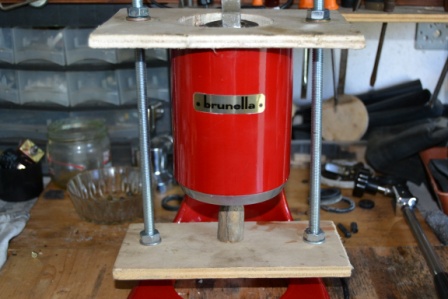

use a tool that can push up the piston

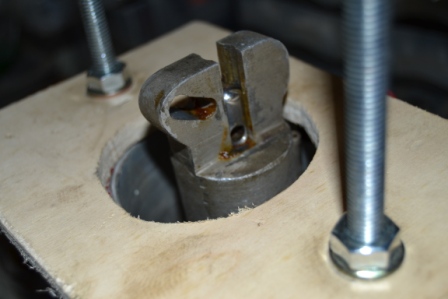

push the piston upward

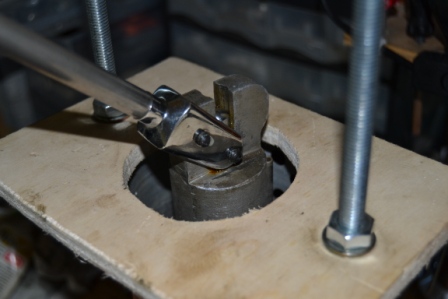

remove the lever pins



release the tool

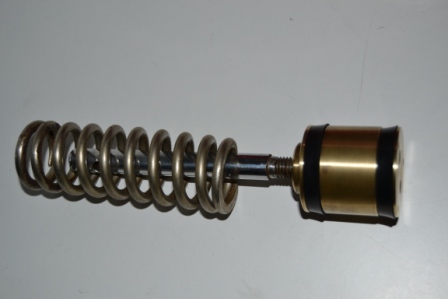

remove the piston
