www.francescoceccarelli.euDO IT YOURSELF - FAEMINA

SHAFT PISTON GASKET REPLACEMENT





The u-cup shaft piston gasket, over time can lose its efficiency and cause some small leaking, especially in the initial phase of heating

I used, to solve the inconvenience, a rubber washer in silicone, but to avoid damaging it while inserting the shaft piston, I propose a different way of replacement.

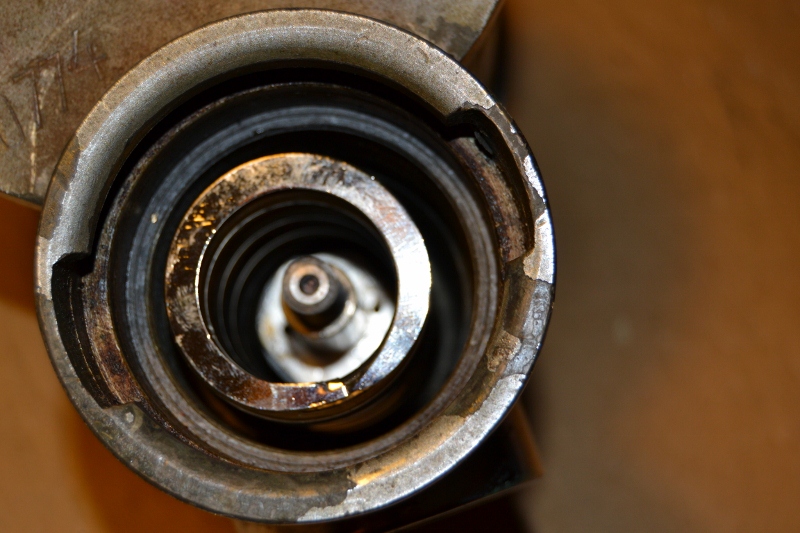

disassemble the shaft from the piston



put the new gasket



put the ring nut



put a little bit of  lube and insert the shaft



screw the ring nut



put the spring



put the piston body



screw the piston body



(a big thanks to Marcel Speek for the suggestion)
