PEDRETTI  KIM   - set maintenance

all models





The KIM lever machine needs:

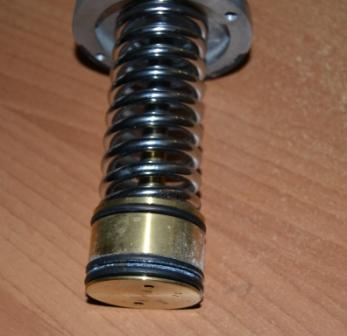

- 3 o-ring seal for piston (pic 1)

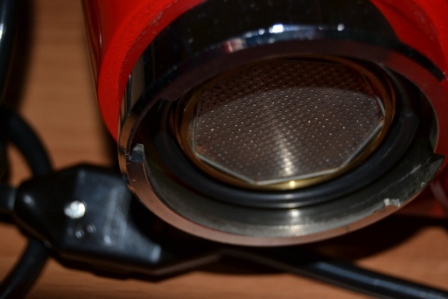

- o-ring seal  for portafilter (pic 2)

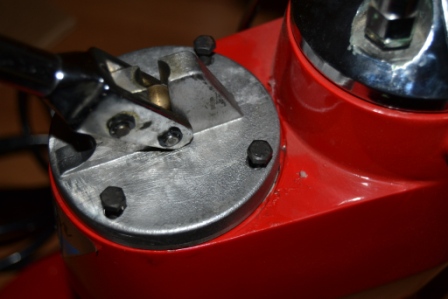

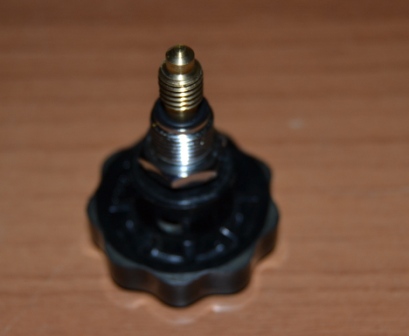

- o-ring seal for steam tap (pic 3)

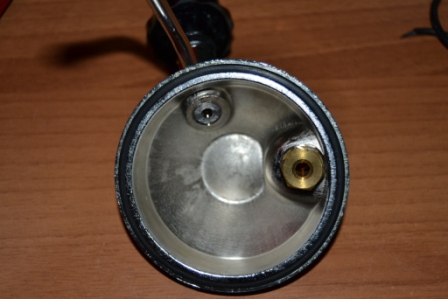

- o-ring seal for cap (pic 4)

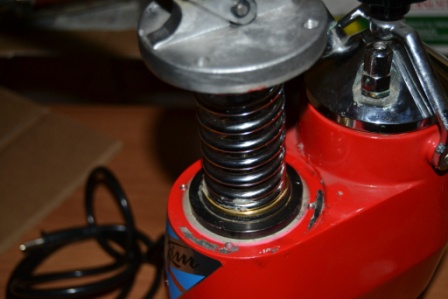

pic 1



pic 2







The replacing is quite easy

come rimuovere il pistone / how to remove the piston for version 1.0

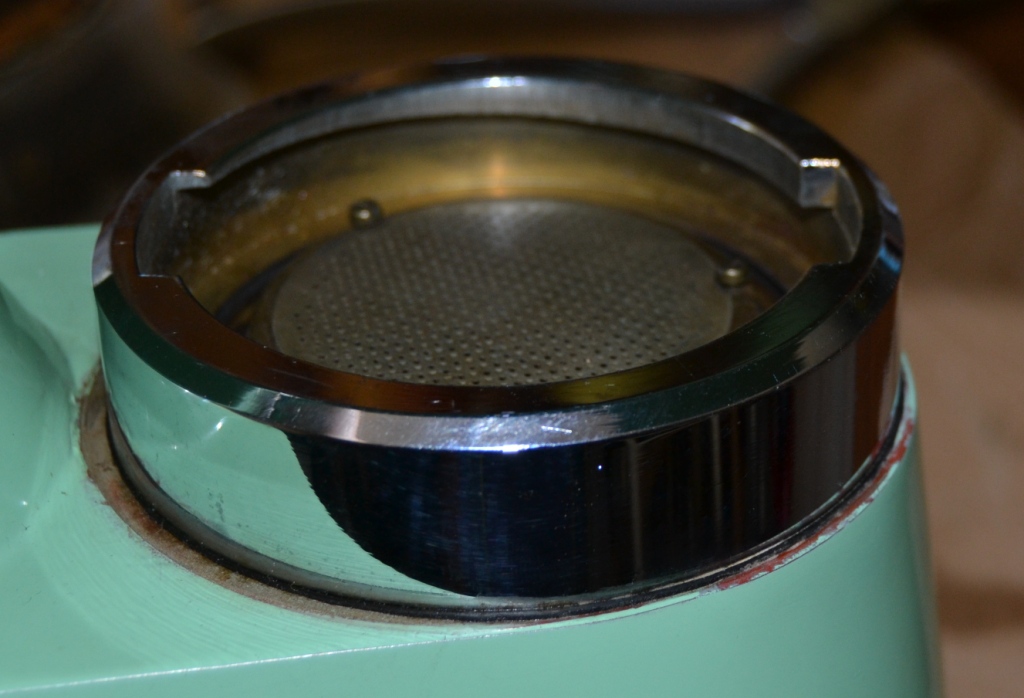

rimuovere la doccetta/  remove the shower plate

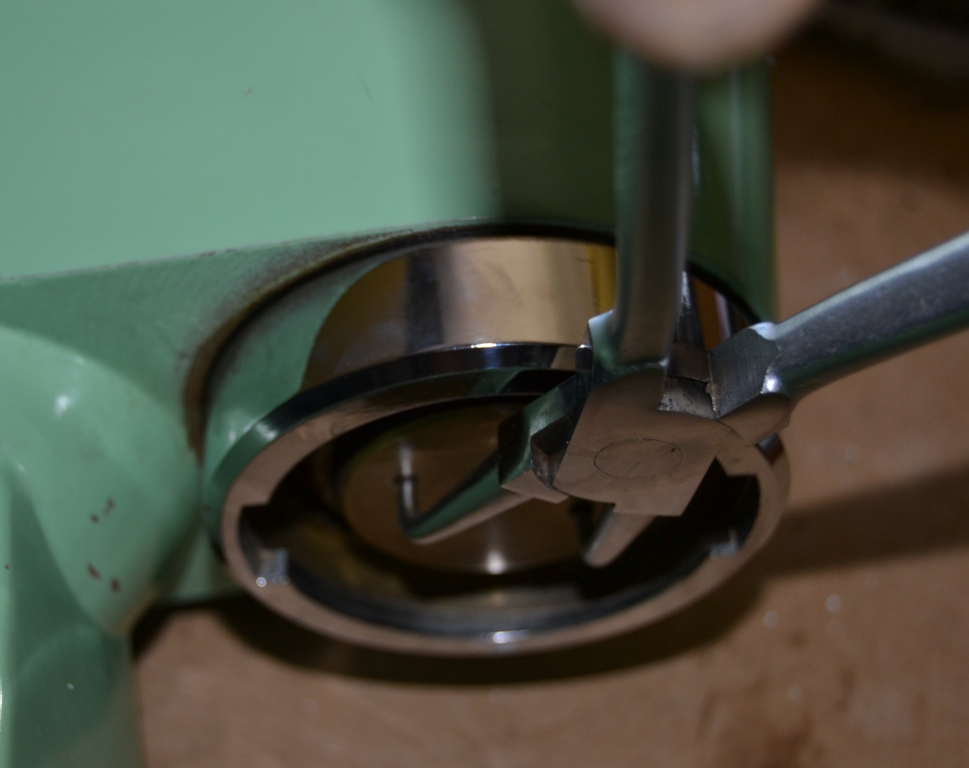

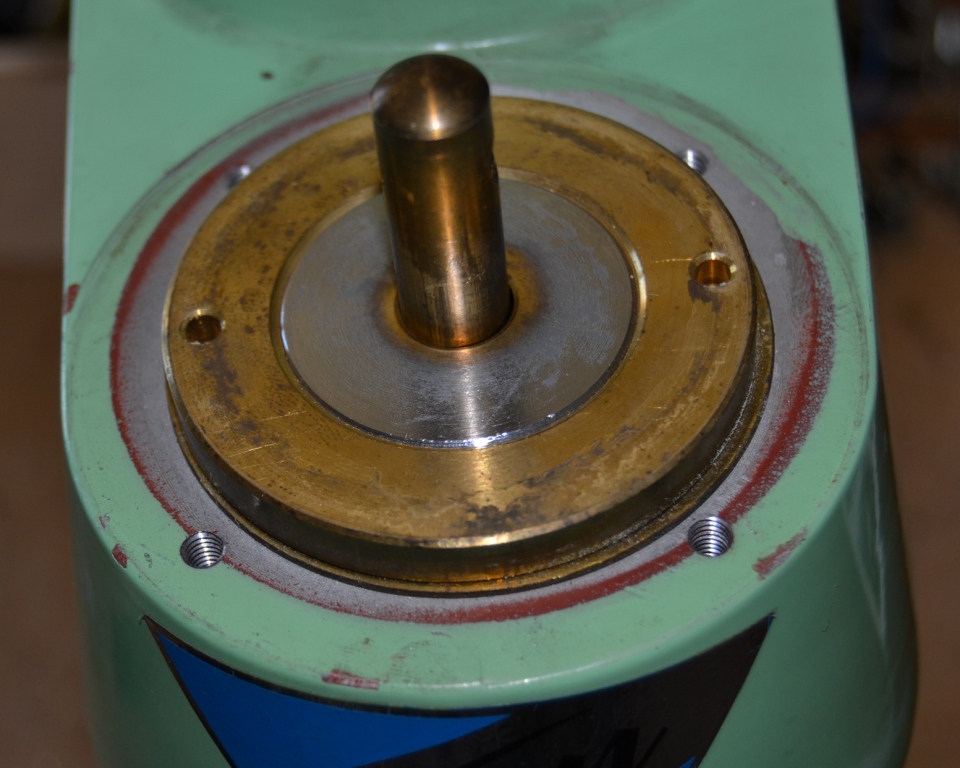

svitare il pistone / remove the piston

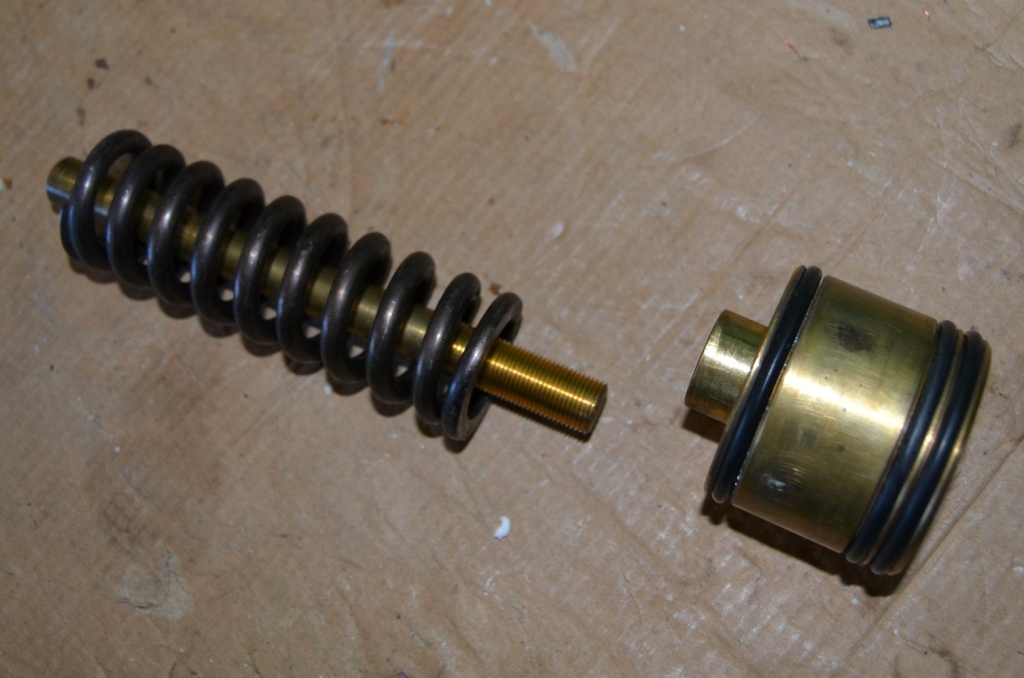

sostituire le guarnizioni / replace the gaskets



inserire l'asta del pistone e la molla e riavvitare il pistone /

put the shaft piston with the spring and screw the piston



come rimovere il pistone / how to remove the piston for version 2.0
