7 BRASS BOILER TO BASE RING

The brass ring serves to unite behind the boiler. It screws directly on the basis of the boiler.
Initially only served to set the basis of the boiler in 1980 but is changed in order to allow screwing over the resistance through 3 screws.
In 2000, is replaced with that in Bakelite, cheaper but subject to breakage, so that in 2004, La Pavoni returns to use the brass ring.

TYPE

FEATURES

START PRODUCTION

END PRODUCTION

MATERIAL

WEIGHT

DIMENSIONS

AVAILABLE

07 ghiera old a.jpg

07 ghiera old b.jpg

RING WITHOUT HOLES



(year 1963)

1959

1973

steel

120 gr

10,0 cm x 0,5 cm

no

07 ghiera old c.jpg

07 ghiera old d.jpg

RING WITHOUT HOLES



(year 1978)

1974

1979

steel

57 gr

10,0 cm x 0,5 cm

no

07 ghiera old e.jpg

07 ghiera old f.jpg

BRASS RING

1980

1998

brass

135 gr

10,0 cm x 1,4 cm

no

07 ghiera nuova a.jpg

07 ghiera nuova c.jpg

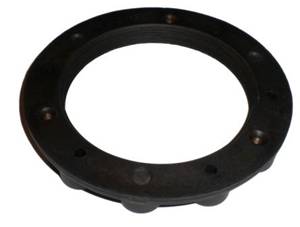

BAKELITE RING

1999

2004

bakelite

87 gr

11,0 cm x 1,4 cm

no

07 anello fissaggio caldaia.jpg

07 ghiera b.jpg

BRASS RING

2005

now

brass

135 gr

10,0 cm x 1,4 cm

yes
