EUROPICCOLA ER – september 2004 |
KEY FEATURES
The machine was
produced in September 2004 (signed under the base).
Is the last model of Europiccola (Millenium Edition).
The machine is characterized by the
group with design rounded and a teflon sleeve inside,
which in addition to recall the shape of the first group of machines 60s, help to improve the
thermal efficiency and maintain constant water temperature escaping from the
shower plate.
La Pavoni
begun the production of this model in 2001.
The other important features are:
· holder filter and filter baskets with
diameter 60 mm
· possibility to use pods
|
DETAILS |
||
|
|
|
|
|
Cap plastic |
Group
fixed to the boiler with two bolts |
Pressure
gauge to verify the correct pressure in the boiler (added later) |
|
|
|
|
|

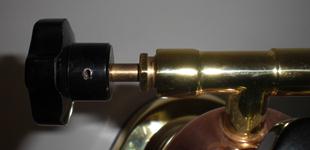

Steam tap |
Steam pipe
auto frother |
Safety valve
with antivacuum |
|
|
|
|
|
sight
glass with plastic protection |
Shower plate and gasket |
Holder
filter, filter baskets (single, double, pods) |
|
|
|
|
|
brass
base and drip tray |
Heating
element in metal fixed with 3 bolts on the boiler, pressurestat,
thermostat |
Sub-base
in plastic with 4 rubber foots |
|
|
|
|
|
Switch
with red light (light if power on) and green light (light if pressure off) |
Logo sticker |
Grid, measuring spoon, tamper |
|
|
|
|
|
Original box |
Brass grid |
Cappuccino automatic |
|
