PROFESSIONAL PL – december 1989 |

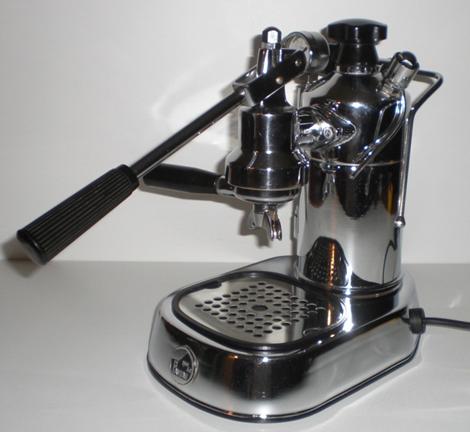

The Professional model was born in 1974 and remains virtually unchanged
until the late '80s.
The model described differs from the previous (1974-1982) only for the sub-base
plastic screwed to the base chromed.
The models with these features were produced in the period 1982 to 1990.
On the heating element is engraved the month and year of manufacture.
KEY FEATURES
·
heating
element in brass and copper with thermofuse 120°C stack in a hole in the center
of element
·
adhesive
in metal with black background
Is the best Professional model manufactured by La Pavoni , fully
chromed, with element in copper characterized by its silent and the piston in
brass.
Later models will lose the strength and quality that distinguishes them.
|
DETAILS |
||
|
|
|
|
|
cap in bakelite and brass |
Boiler increased and group fixed with 2
bolts |
sight glass level with metal cover |
|
|
|
|
|
pressure gauge full chromed |
steam tap body and steam pipe |
steam pipe |
|
|
|
|
|
group with brass piston |
holder filter and filter basket 58mm
diameter |
power cable |
|
|
|
|
|
safety valve |
base chromed with drip tray |
Electric diagram, heating element fixed with 3 bolts to the brass
ring, pressurestat, thermofuse 120°C |
|
|
|
|
|
red switch |
logo sticker adhesive |
plate with characteristic |
|
