FE-AR - LA PEPPINA version 700W (sn 57103) |

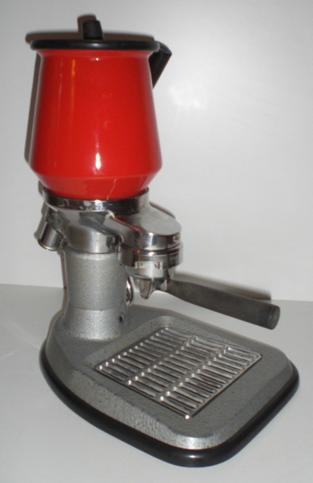

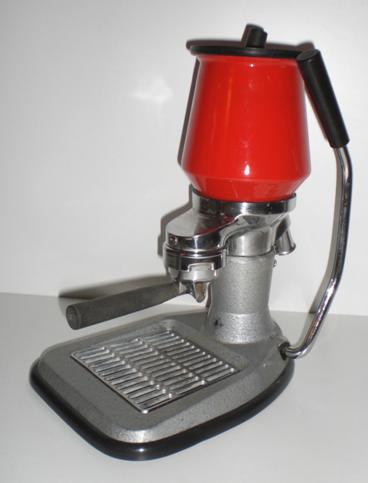

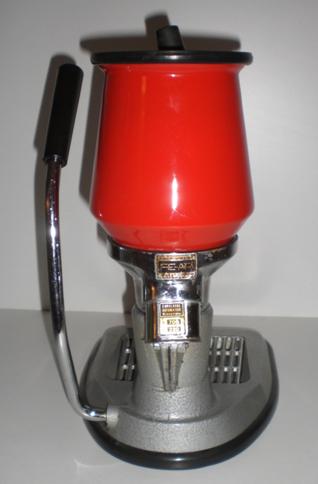

The machine

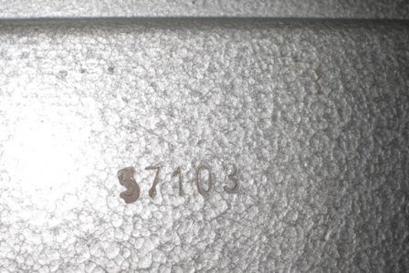

was produced by FE-AR Milano in 70's and has the serial number 57103
(engraved under the base).
Technical specifications:
· capacity
0,8 l
· voltage
220V
· watt
700
· dimensions
36cm x 26 cm x 22 cm
· weight
3,5 kg

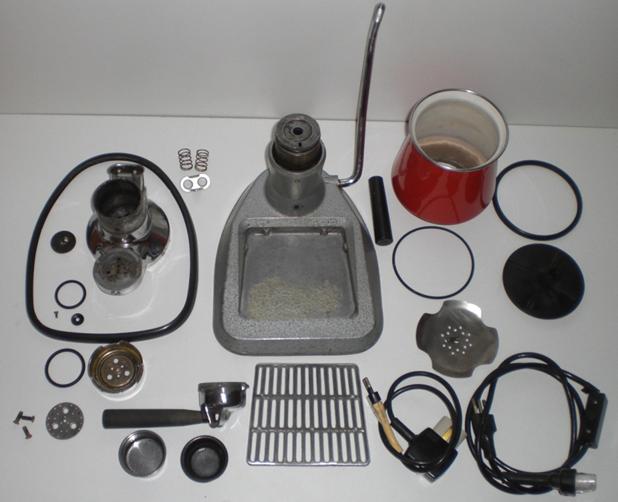

The machine
is dismantled easily by unscrewing
partially the screw that is located in the rear.
|
DETAILS |
||
|
|
|
|
|
plastic cap |
pot enamel |
support fixing of pot enamel |
|
|
|
|
|
parts
and seals of the group |
group assembled |

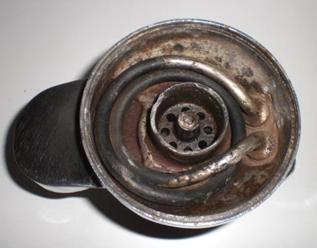

heating element |
|
|
|
|
|
holder
filter and filters basket |
base, piston and lever |

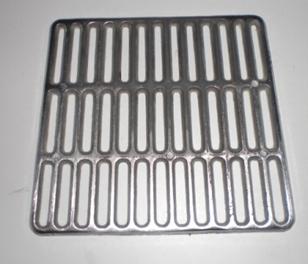

drip tray |
|
|
|
|
|
ejection device plug |
electrical coupling |
power cable |
|
|
|
|
|
piston and gasket |

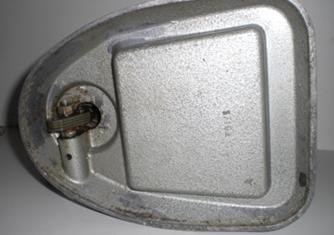

sub-base |
rubber protection |
|
