GAGGIA SPAGNA

version with spring - 1954  v.2.0



The Gaggia Spagna was produced in the early 50s. The first version replicated the piston mechanism of the Gaggia Gilda, without spring.

In the second version was introduced the spring in the assy lever-piston.



(advertising found on the Sebastien blog https://cafeoblog.wordpress.com)

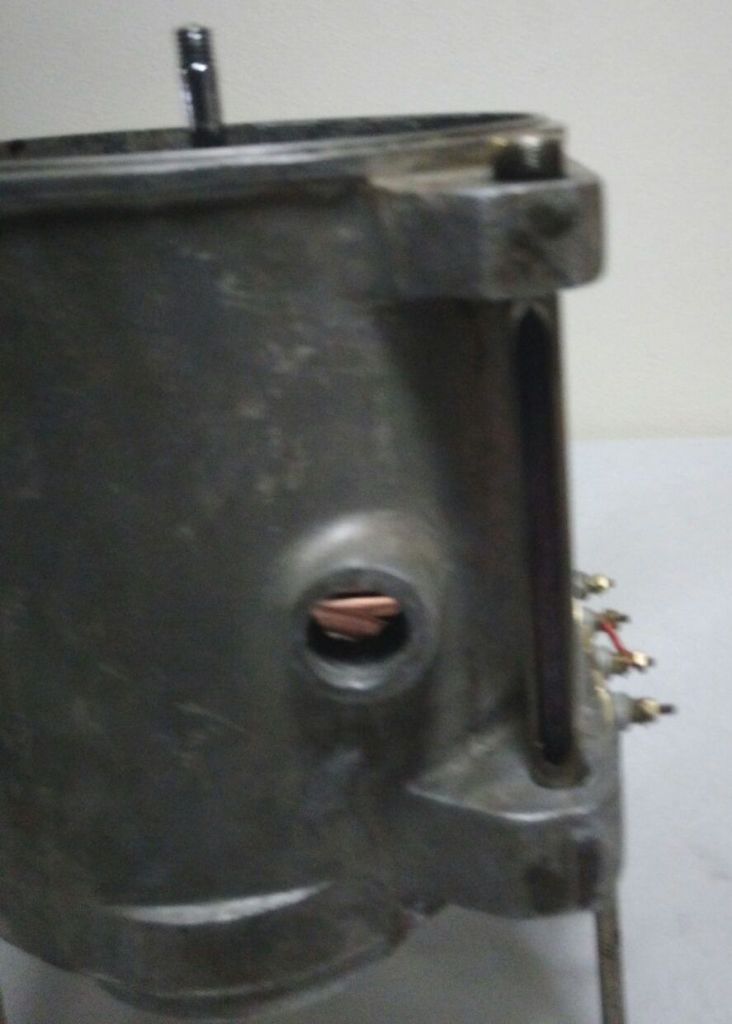

Has two heating elements and two switches, min-0 and max-0.



Technical specification:

capacity

voltage

power

dimensions (WxDxH)

weight

3,0 l

220 V

200+800 W

32 cm x 32 cm x 33 cm

14,0 kg



The machine can be easily disassembled without special tools.

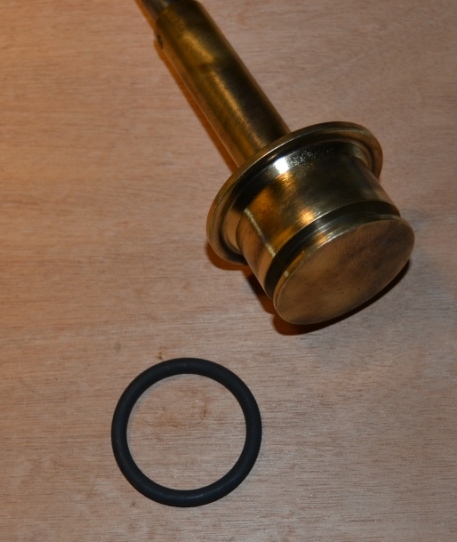

Gaskets





DETAILS







(contribute by “collezione Espresso Vintage Passion”)
