The brand "Zerowatt" was born in 50s and became famous in Italy for the production of small household appliances, washing machines, electric stoves. The company was acquired in the mid-80s by the Candy Group.

The first models date back to the 50s and browsing on the web I found some pictures of what I believe is the first model.

In the '60s we found the model CA 707 precursor of model CA 708 and which differs in the shape of the lever bent downwards and for the piston manually operated.

The Zerowatt CA 708 lever espresso machine for domestic uses a boiler opened and a heating element of 650 W. When pushes down the lever to actuate the plunger, it compresses the spring steel. In this way the water comes into the sleeve. When releases the lever, the piston, actuated by the spring, pushes the water through the coffee filter.

The machine from a feeling of strength thanks to the aluminum body printed in a single block, the handle made of good steel, aluminum tray with an unusual thickness of several millimeters, the nice spring steel and the piston in brass. Despite the lever is particularly long (28 cm) the effort of push down it is significant.

In the 70s-80s is produced the model CA 310, very rational with water level indicator and supply of steam and the model CA 709 replica of Caravel Ursula by Giubel.

		Description

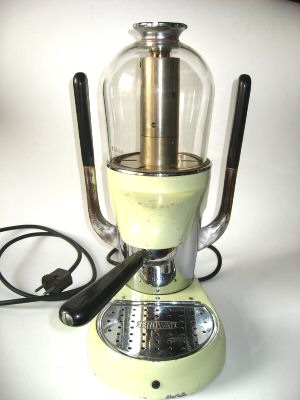

		Zerowatt (unknown model)		anni '50

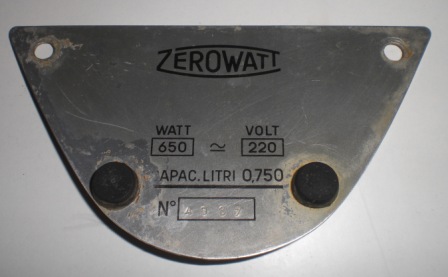

		Zerowatt CA 707		anni '60 - manual piston - sn 4987

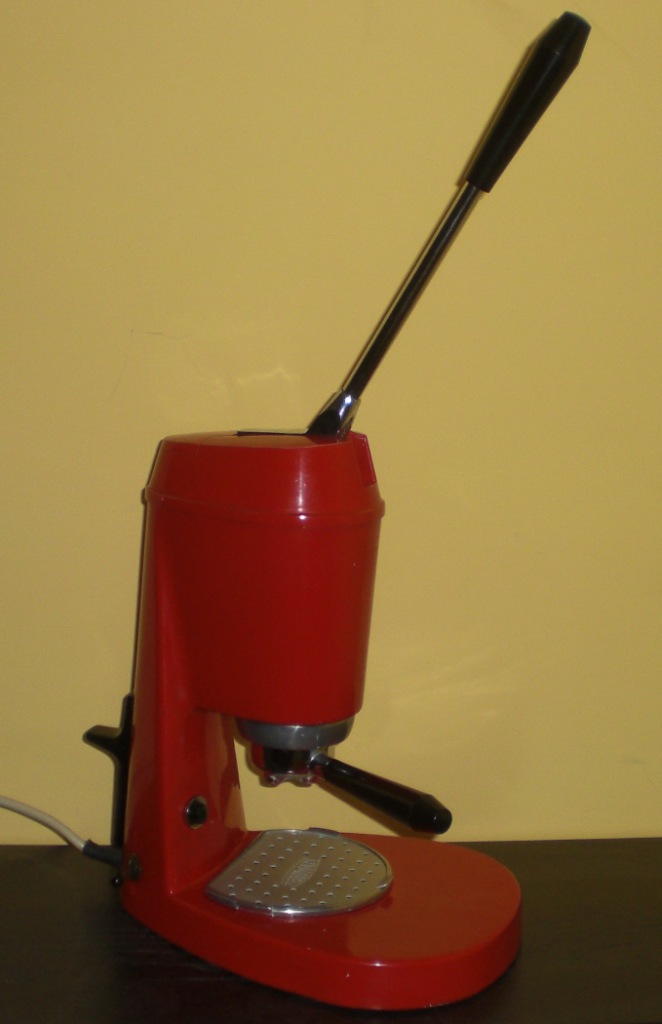

		Zerowatt CA 708		anni '70 - piston with spring - sn 8750
		Zerowatt CA 708		anni '70 - piston with spring - sn 11414
		Zerowatt CA 708		anni '70 - piston with spring - sn 16803 - made in Spain

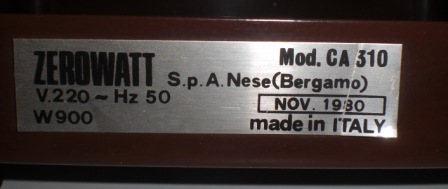

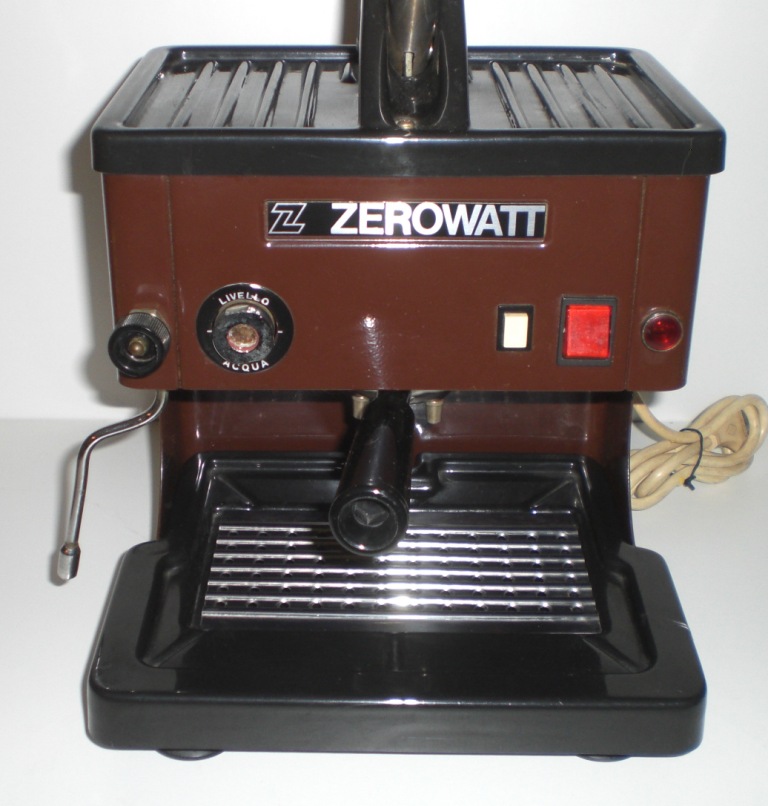

		Zerowatt CA 310		anni '80 - piston with spring
		Zerowatt CA 310		anni '80 - analogous to previous
		Zerowatt CA 310		anni '80 - analogous to previous
		Zerowatt CA 709		anni '80 - manual piston

Links photo Zerowatt CA 709 http://www.home-barista.com/levers/caravel-ursula-initial-look-t10659.html
