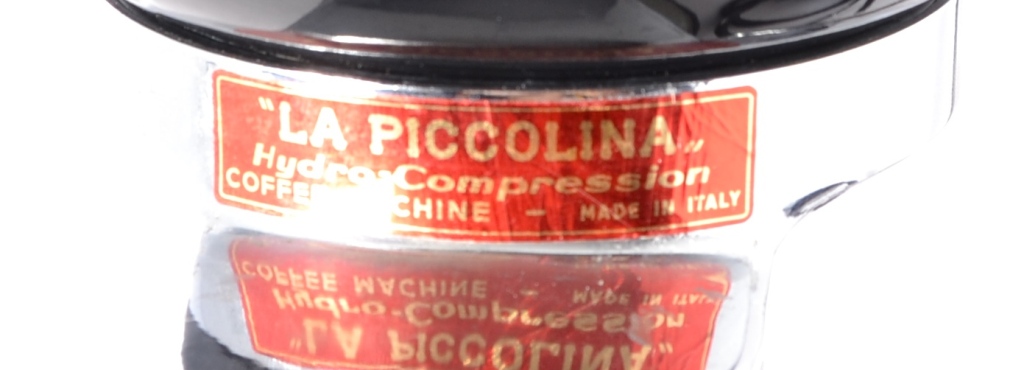

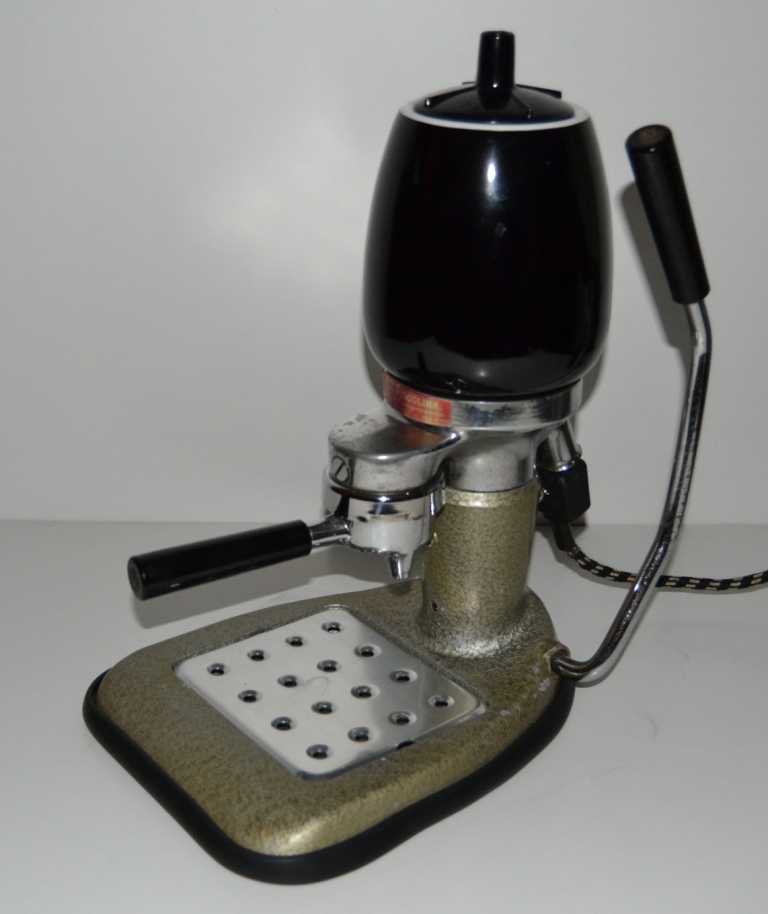

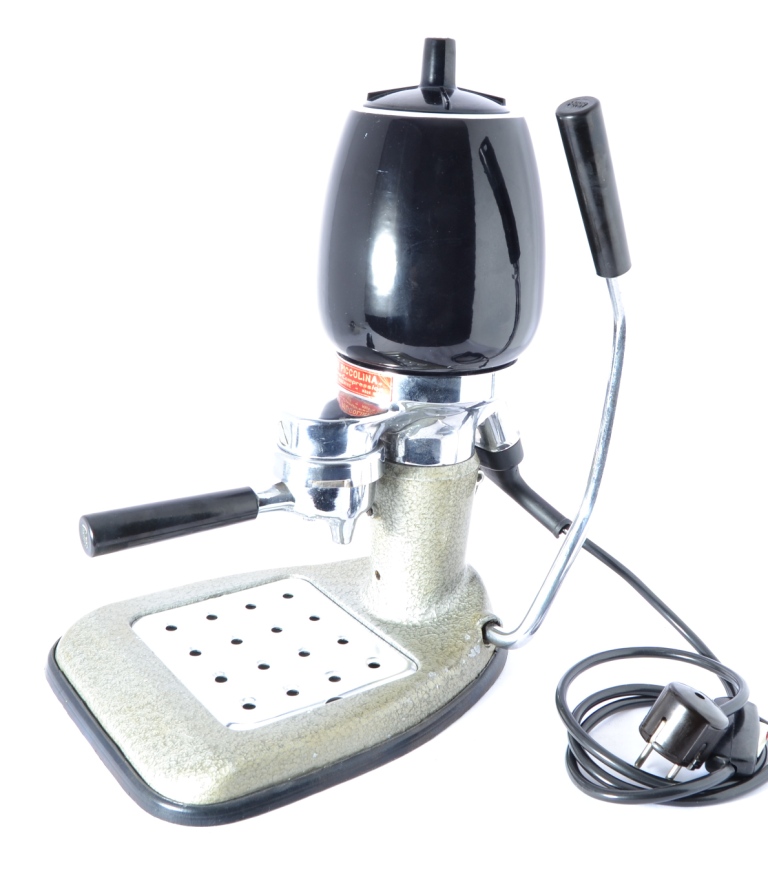

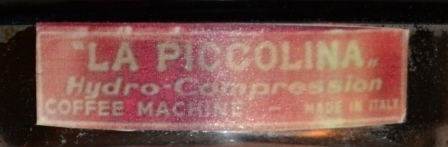

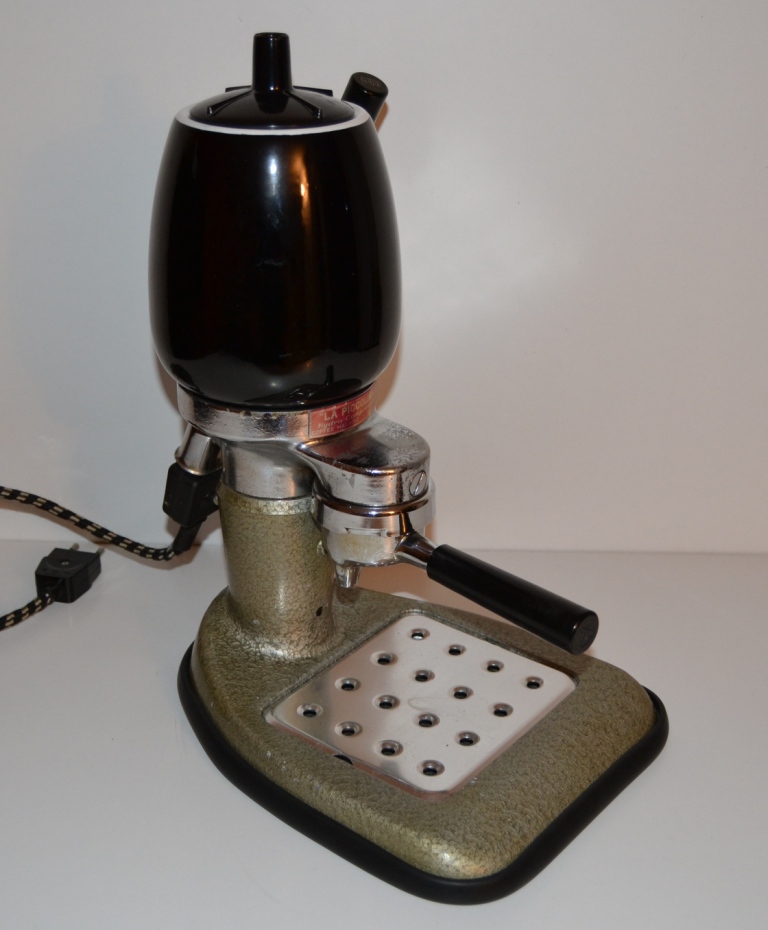

FE-AR LA PICCOLINA

700W - 125V year 1959

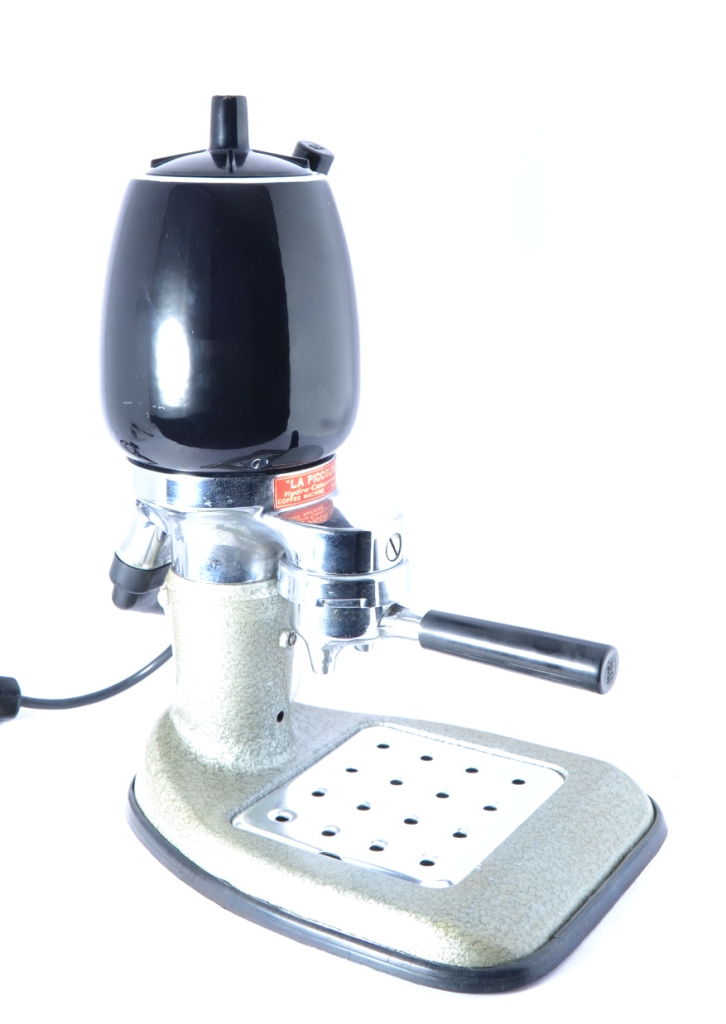

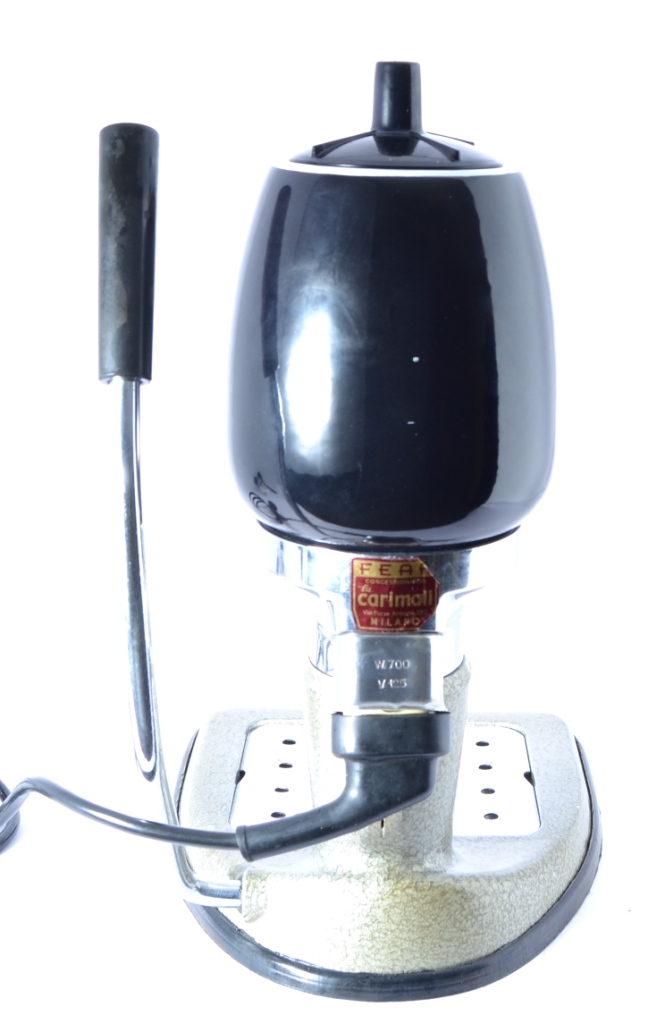

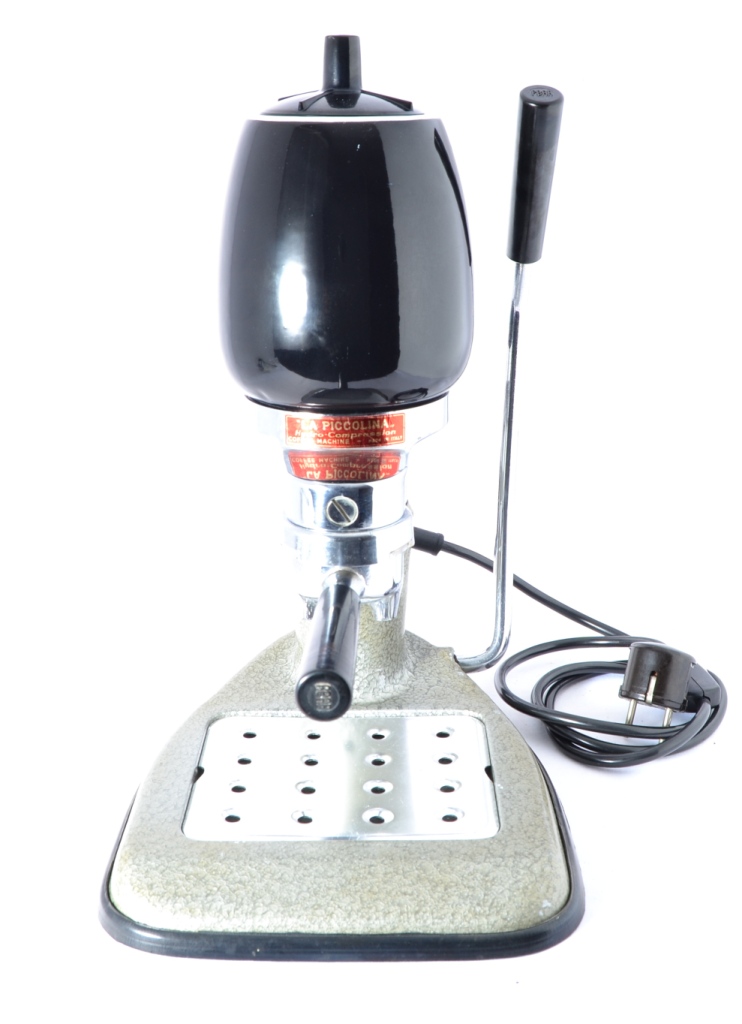

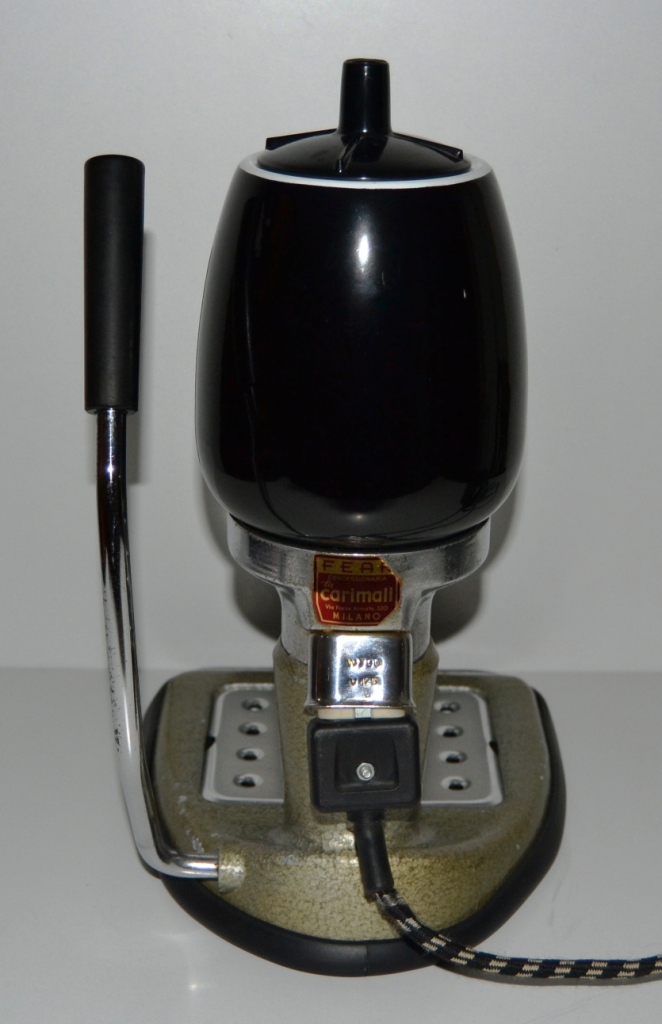

The Piccolina is the first machine produced by the FE-AR in the late '50s and marketed by La Carimali

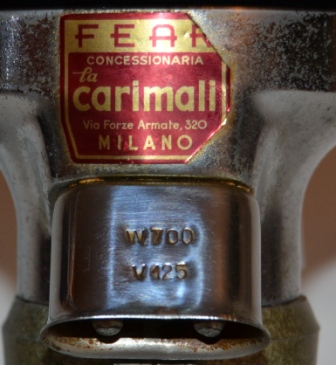

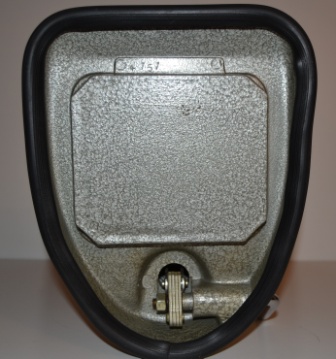

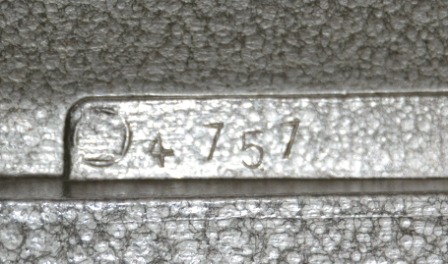

Is identified by the number 4757 engraved under the base and the year / month 59 12 engraved on the heating element.




Essentially identical to the later models,differs for, the following details

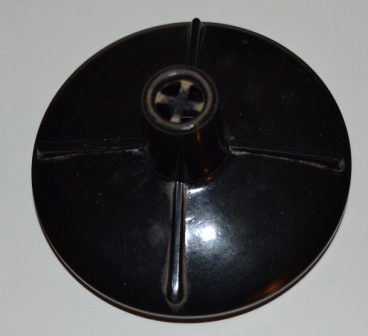

    plastic cover

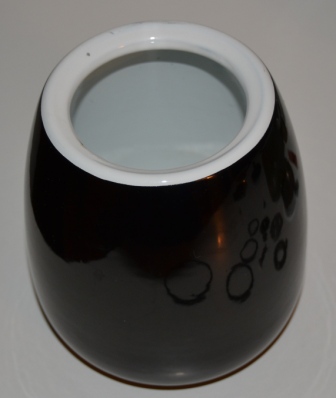

enamel kettle with rounded shape

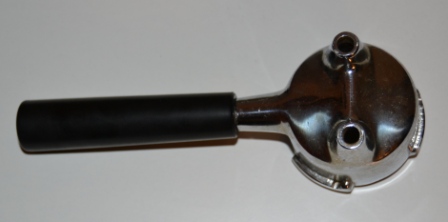

holder filter


Technical specification:

capacity

voltage

power

dimensions (HxWxD)

weight

0,8 l

125V

700 W

36 cm x 22 cm x 26 cm

3,5 kg

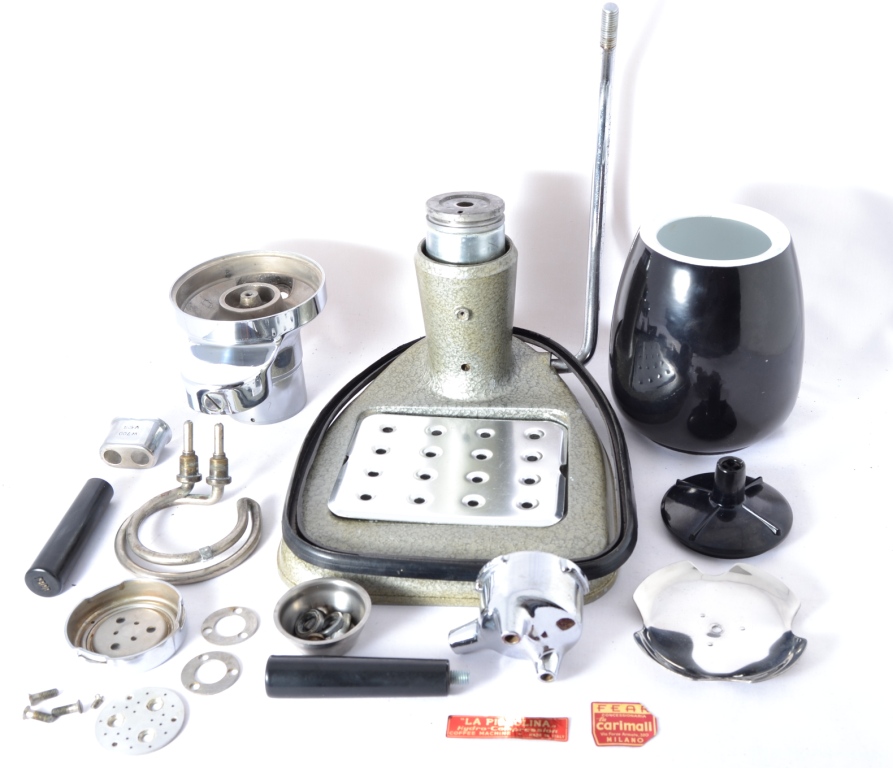

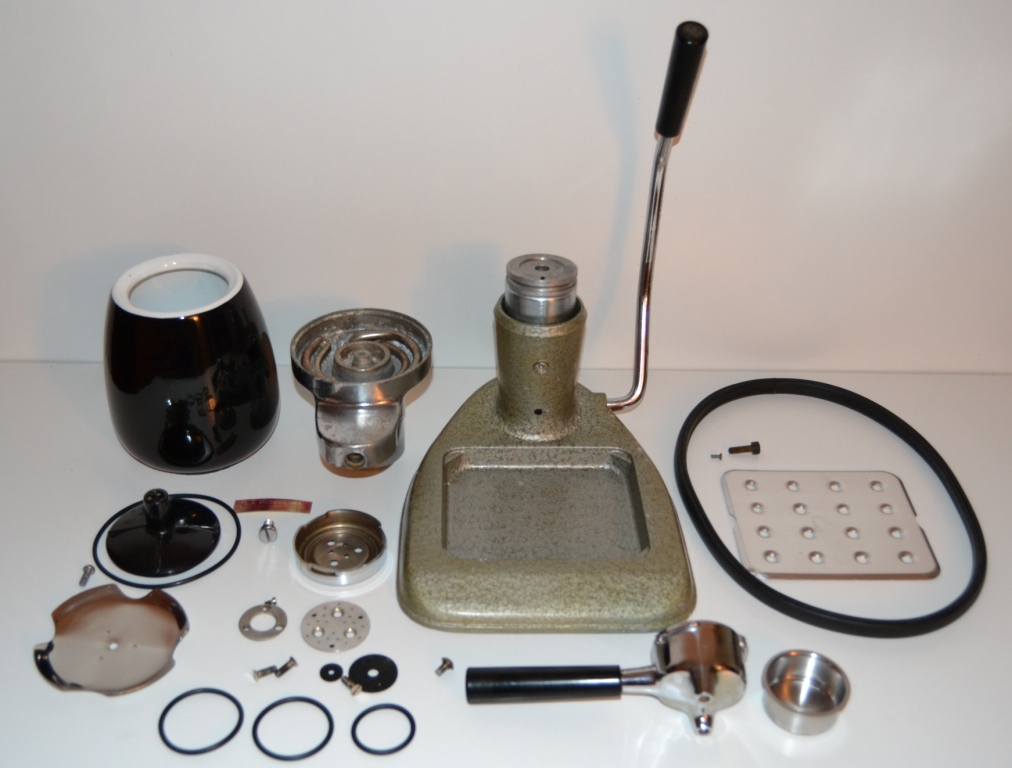

The machine can be disassembled by removing the small screw located on the front of the body and then the bolt back.




DETAILS

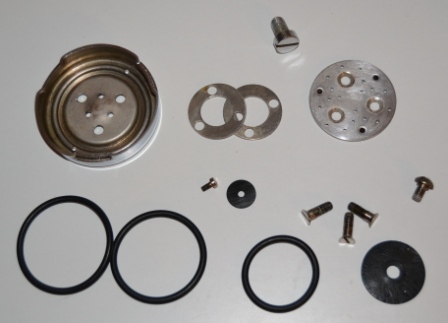

group parts

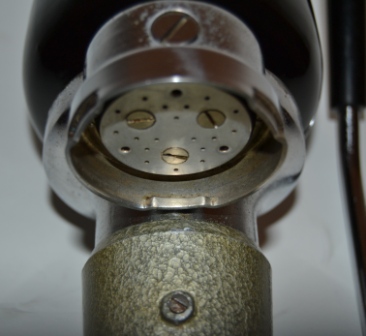

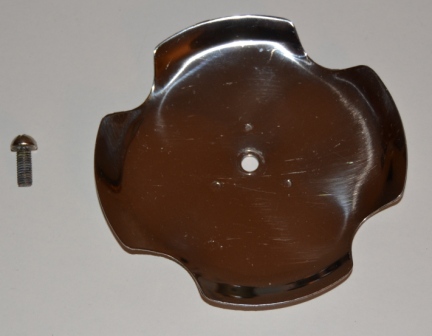

shower plate

plate kettle fixing

sub-base
