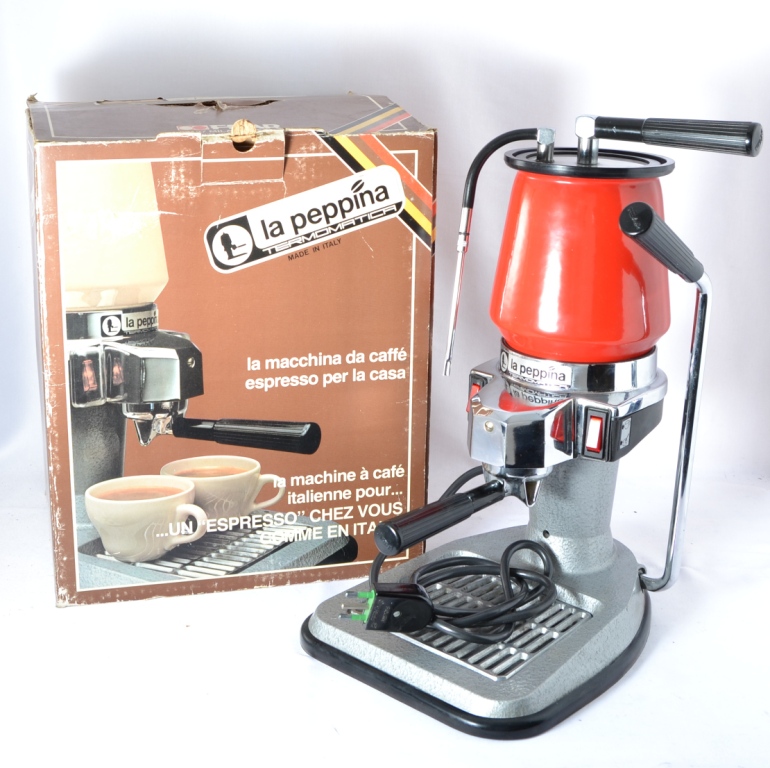

The model Termomatica is equipped with a termostat that
stops the heating. A second switch located on the right of the body,
statrts the heating for steam production. Except for the group, all the
other parts are the same as the previous model.
![](Foto/lp_termomatica_8_02/DSC_1833.JPG)
Technical
specification:
capacity
voltage
power
dimensions (HxWxD)
weight
|
0,8 l
220V
1000 W
36 cm x 22 cm x 26 cm
3,5 kg
|

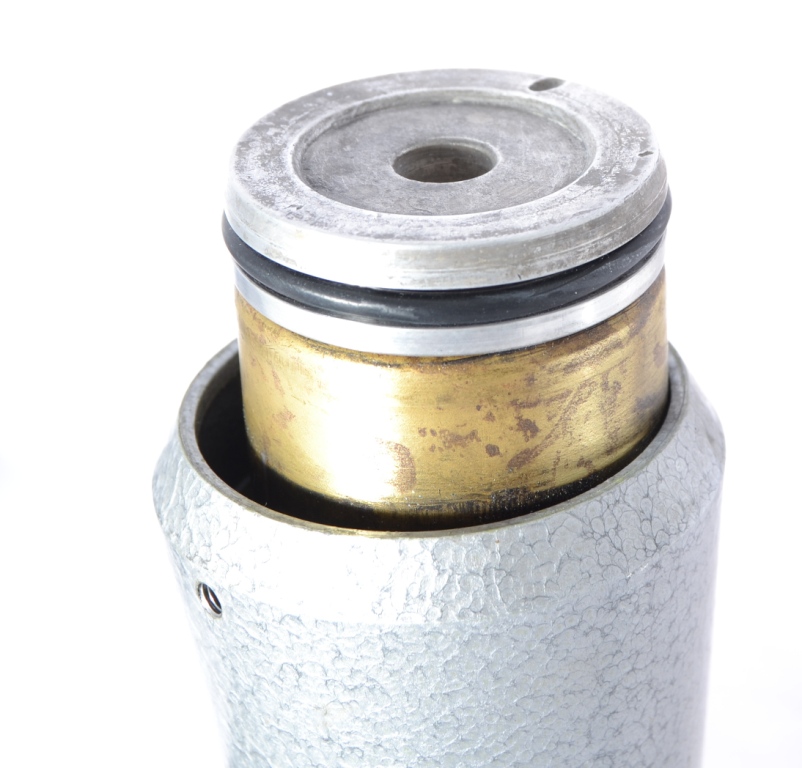

The machine can be disassembled by
removing the small screw located on the front of the body and then the
bolt on the back.
![](Foto/lp_termomatica_8_02/DSC_1850.JPG)
