MANUALS



for

maintenance - repairs - changes

gp to the dedicated page




SPARE PARTS

The Pavoni machines have been produced without interruption since the 60s and most of the spare parts are still compatible, but there are differences between the first, second and third generation so it is important, before buying the parts you need, to classify with precision your model.

Type   period availability
First generation machines produced from 1961 to 1974 only few spare parts  available at service centers
second generation machines produced from 1975 to 2001(old group) most of spare parts  available at service centers
third generation machines produced from 2001 (new group) all of spare parts  available at service centers

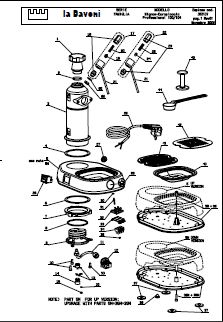

All the spare parts available at service centers are listed in the diagram

WHERE TO BUY

The spare parts available can be easily purchased online at the numerous authorized service centers, list some of these of which I have had direct experience

https://www.lamacchinadelcaffe.com/ - located in Italy

https://www.theespressoshop.co.uk/ - located in UK

https://www.espressocare.com/ - located in USA

they ship all over the world and for any doubts about compatibility or shipping costs you should contact them directly.



SPARE PARTS NO LONGER AVAILABLE

Regarding spare parts no longer available (first and second generation) you can contact me. I have small quantities available for my needs which I can supply on request.


Below are the specific seal kits for each model, to know your model look here for europiccola and here for professional

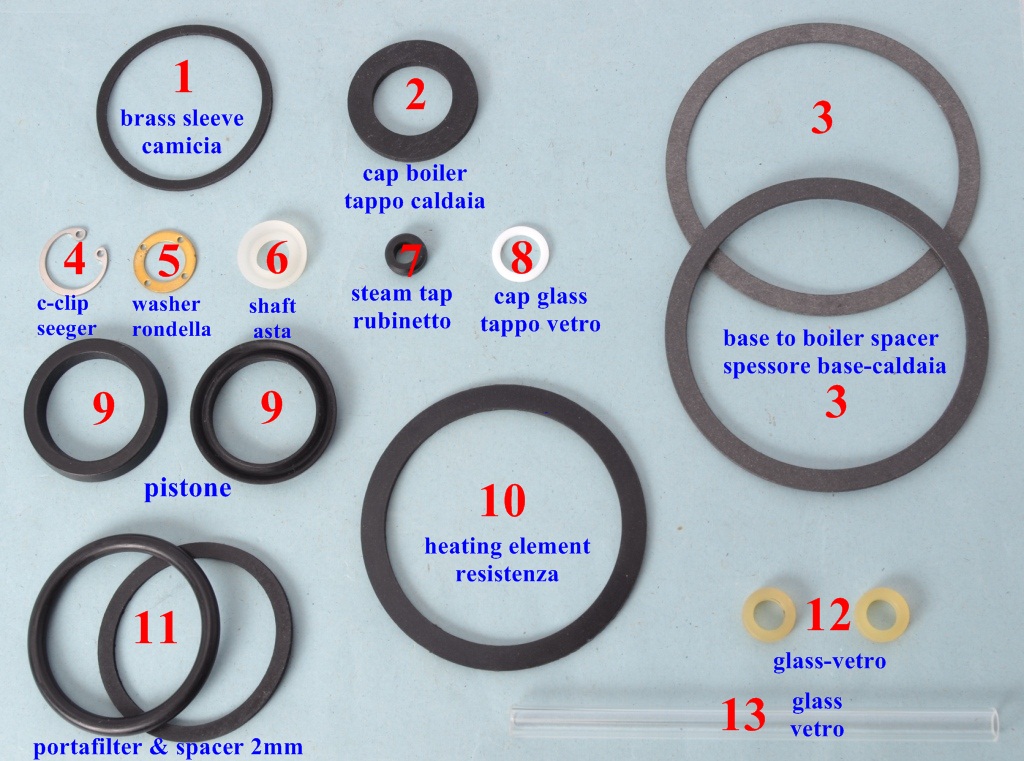

Europiccola v. 1.0-1.8

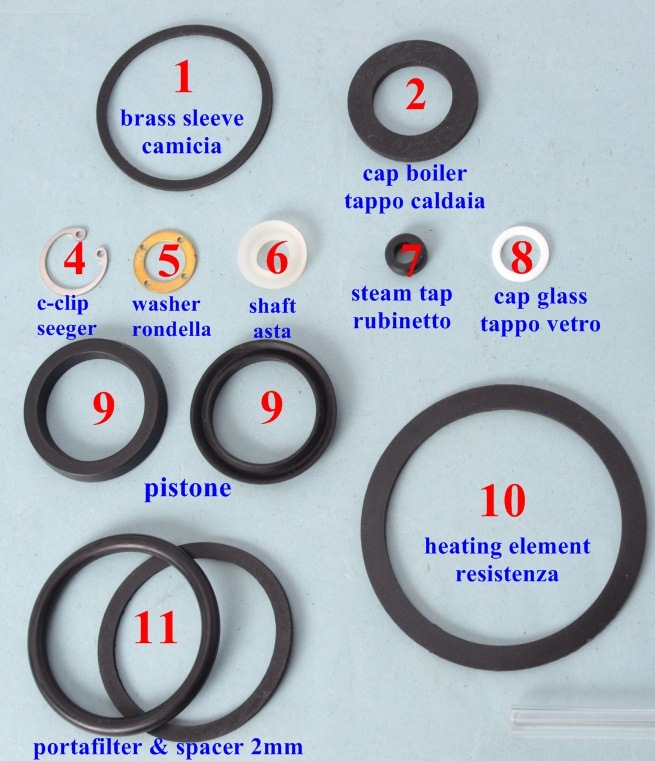

standard kit

full kit

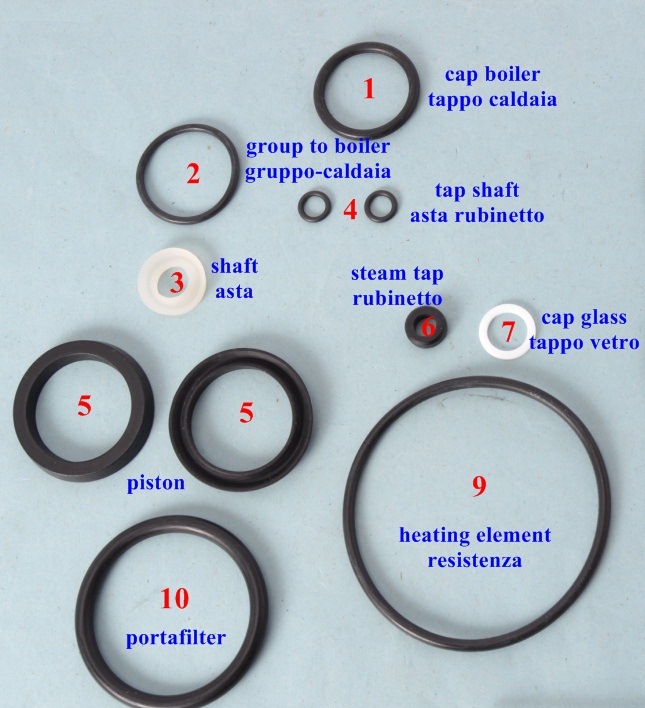

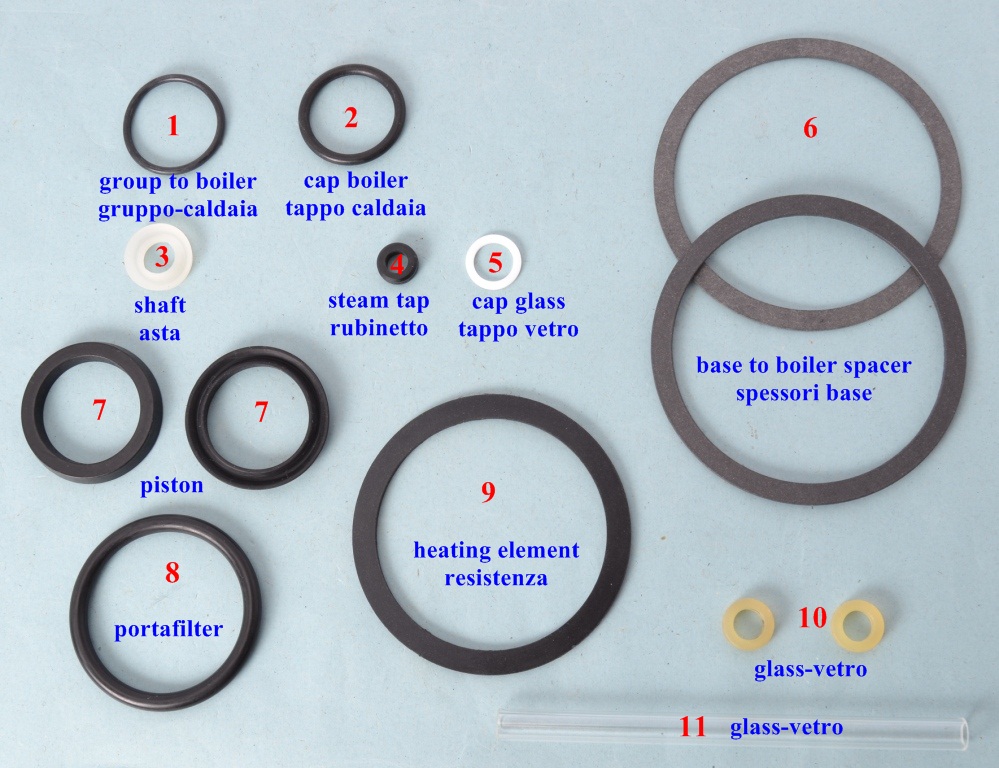

Europiccola v. 2.1-2.4

Professional v. 1.0-2.4

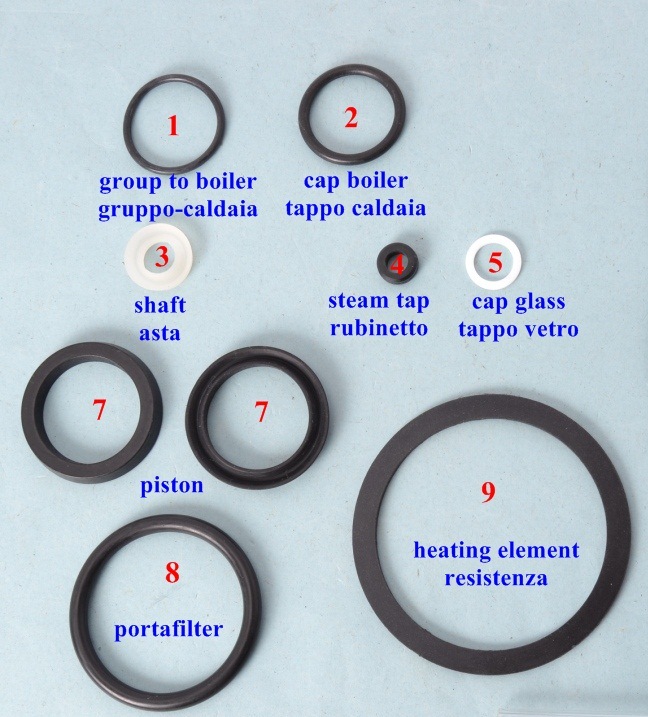

standard kit

full kit



Europiccola v.2.5.-2.6

Professional v. 2.5-2.6

standard kit

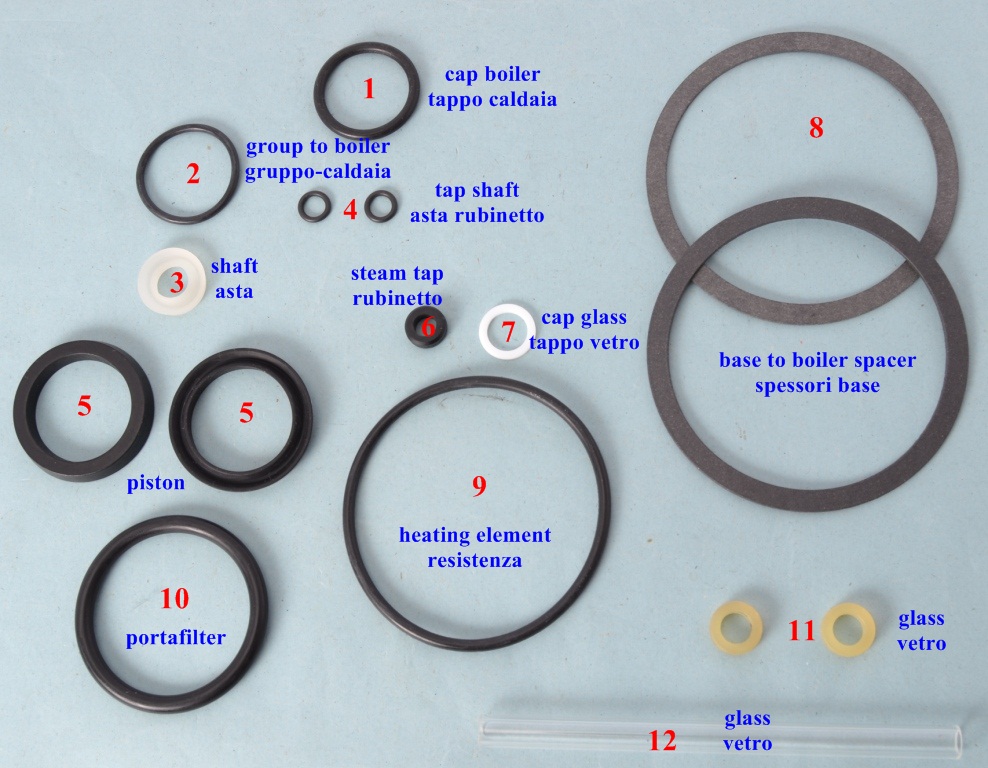

full kit



Europiccola/professional  (new group)

v. 3.0-3.1

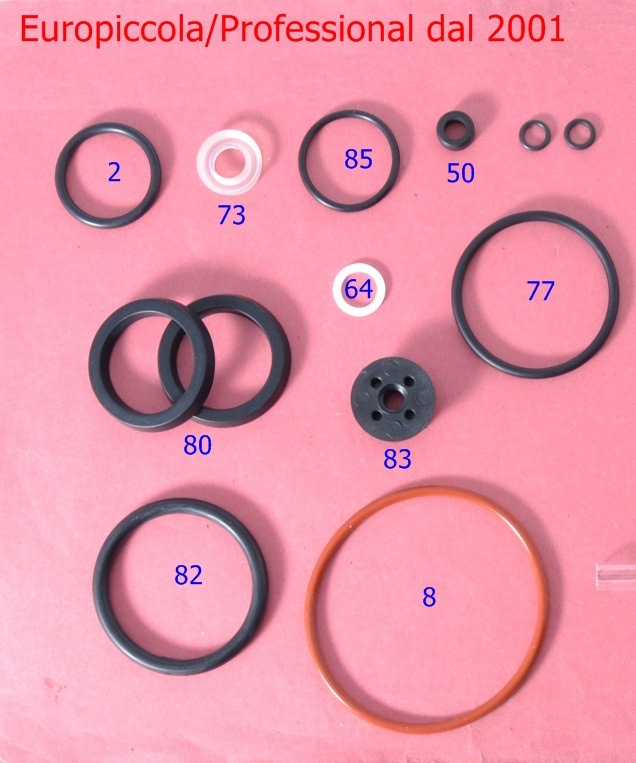

standard kit

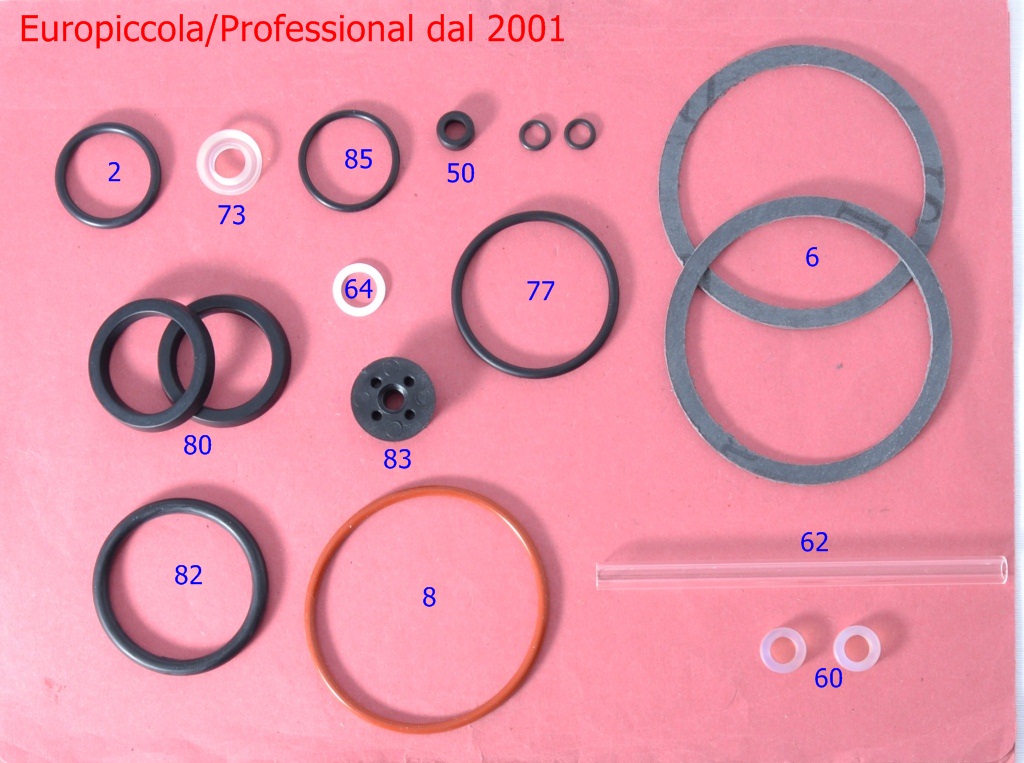

full kit



some of the parts available on demand

logo adhesive


ring for install new type heating element on early model

kit conversion to pstat for early model europiccola

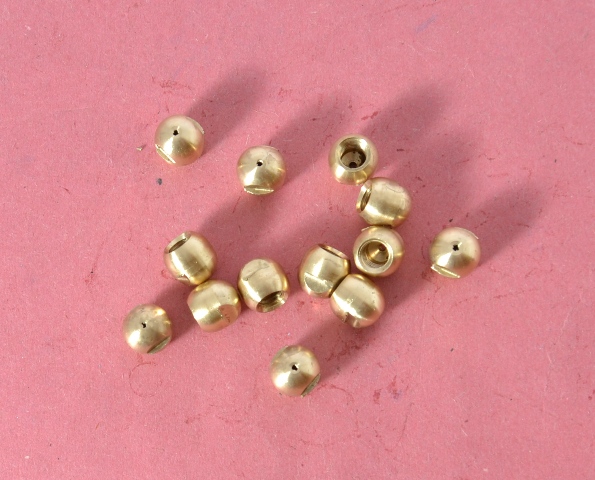

single hole tip

switch for europiccola

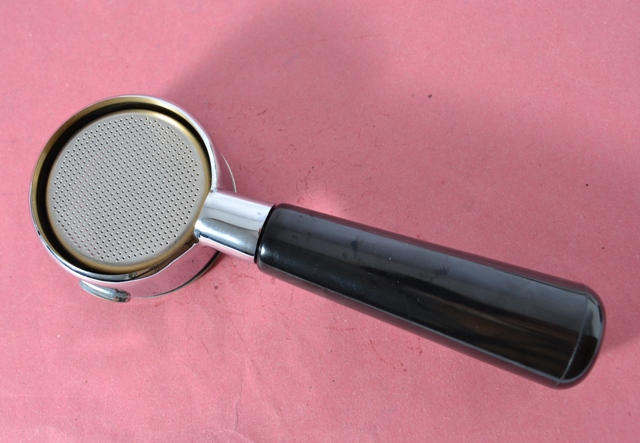

portafilter europiccola/professional bottomless old/new group including spring

c-clip old type for lever pins



IMS precision double basket
old/new group

IMS precision shower plate
old/new group


heating element for  La Pavoni Euromatic







regarding the parts listed below, can be provided by my friend Gabor, that you can contact to  to  resistenza.60@gmail.com

Heating element  for europiccola (110 volt or 220 volt)



aluminium grid early type
